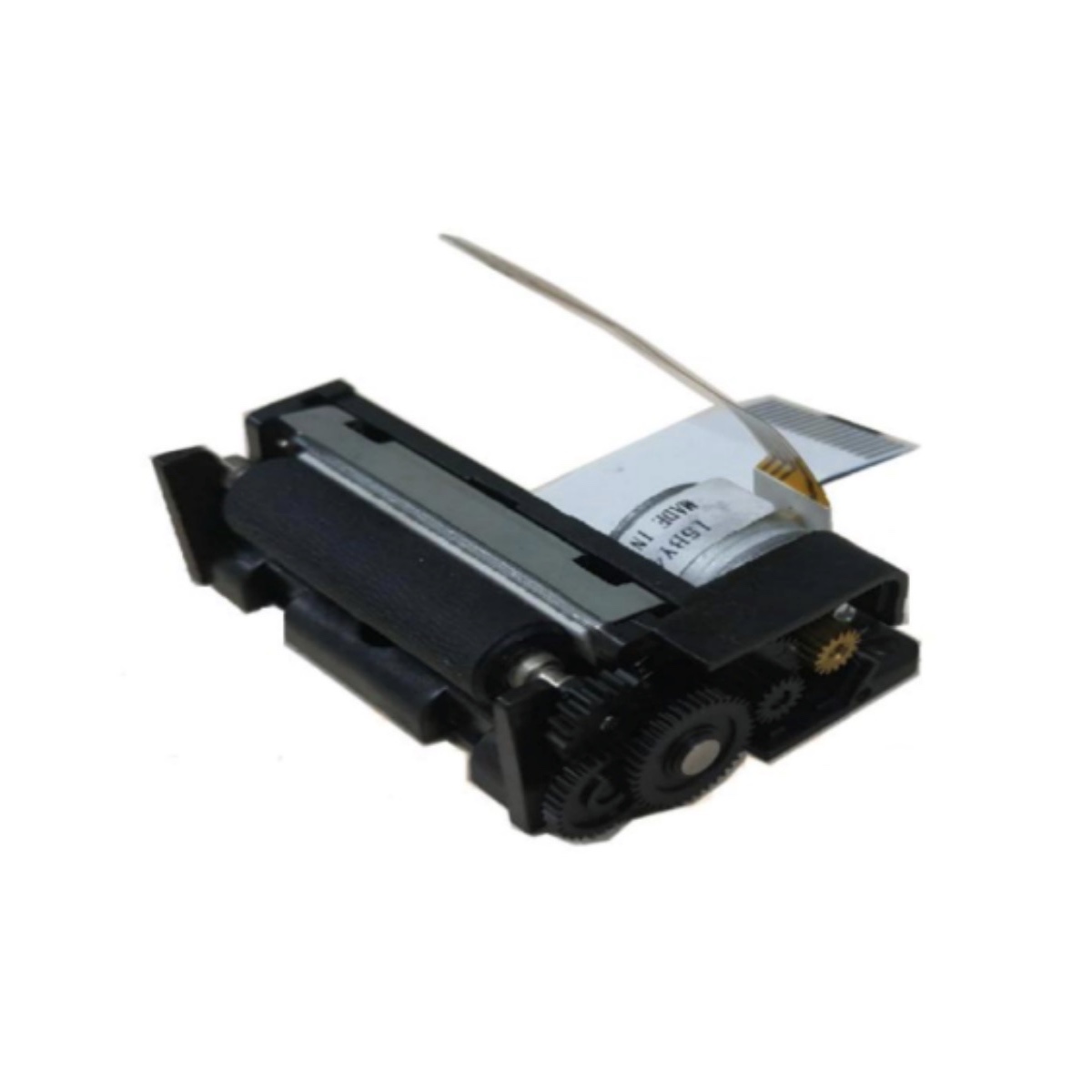

Compact and reliable low-voltage thermal printer mechanisms are ideal for taxi meter printing, featuring low power consumption to support extended battery life.
| Item no. | TP-11 |
|---|---|
| Dimension | 47×33.2×15.2mm |
| Color | N |
| Payment | Paypal, Western Union, T/T |
| Lead Time | 1-2 weeks |
Product specification:
Item:TP-11
Printing method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.50mm/s
Printing width:24mm
Paper Type:Continuous paper
Paper width:37mm±0.5mm
Paper thickness:0.053-0.09mm
Paper loading:Easy paper loading
TPH:temperature thermistor
Paper end detection:Photo interrupter
TPH life:More than 50km(12.5% print density)
Wear life:More than 50km
Printer head:VH:3.15-7.2VDC
Motor:4.2-7.2V
Logic voltage:VDD:2.7-5.25VDC
Operating temperature:0°C ~ 50°C(No condensation)
Operating humidity:20% ~ 85%RH(No condensation)
Storage temperature:-25°C ~ 70°C(No condensation)
Storage humidity:5% ~ 90%RH(No condensation)
Dimension(WxDxH):47×33.2×15.2mm
Weight:23.5g
Applications:
