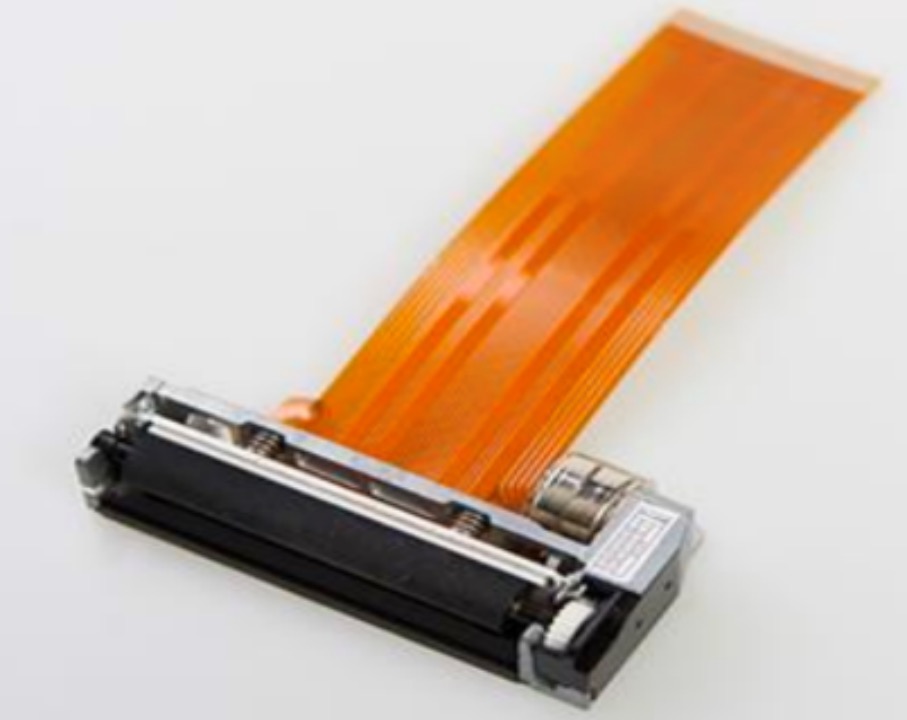

The TP-21 mechanism delivers exceptional performance, reliability, and efficiency, making it an ideal solution for businesses and applications needing high-quality, fast, and budget-friendly thermal printing.
| Item no. | TP-21 |
|---|---|
| Dimension | 69.8×32.7×15.5mm |
| Color | N |
| Payment | Paypal, Western Union, T/T |
| Lead Time | 1-2 weeks |
Product specification:
Item:TP-21
Print method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.80mm/s
Printing width:48mm
Paper Type:Continuous paper
Paper width:57.5mm±0.5mm
Paper thickness:0.053-0.09mm
Paper loading:Easy paper loading
TPH:temperature thermistor
Paper end detection:Photo interrupter
TPH life:More than 50km(12.5% print density)
Wear life:More than 50km
Printer head:VH:3.15-9.5VDC
Motor:4.2-9.5V
Logic voltage VDD:2.7-5.25VDC
Operating temperature:0°C ~ 50°C(No condensation)
Operating humidity:20% ~ 85%RH(No condensation)
Storage temperature:-25°C ~ 70°C(No condensation)
Storage humidity:5% ~ 90%RH(No condensation)
Dimension(WxDxH):69.8×32.7×15.5mm
Weight:45g
Applications:
