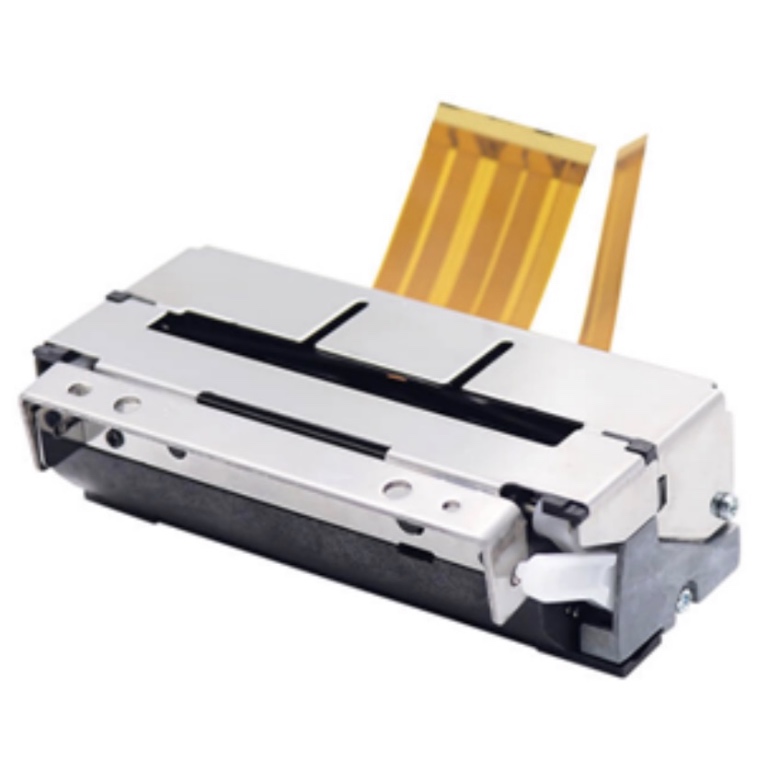

This thermal printer mechanism, compatible with Seiko CAPD245-E, offers a compact design, reliable performance, and seamless integration. It features easy paper loading, 90° vertical paper feeding, and an automatic cutter, making it an ideal choice for precise and efficient printing applications.
| Item no. | TP-26 |
|---|---|
| Dimension | 83.1×43.9×27.4mm |
| Color | N |
| Payment | Paypal, Western Union, T/T |
| Lead Time | 1-2 weeks |
Product specification:
Item:TP-26
Print method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.80mm/s
Printing width:48mm
Paper Type:Continuous paper, die-cut or continuous label
Paper width:57.5mm±0.5mm
Paper thickness:0.053-0.09mm
Paper loading:Easy paper loading
TPH:temperature thermistor
Paper end detection:Photo interrupter
Rubber roller/cutter position:Mechanical switch
TPH life:More than 50km(12.5% print density)
Wear life:More than 50km
Auto cutter:1,000,000cuts
Printer head:VH:3.15-9.5VDC
Motor:4.2-9.5V
Logic voltage:VDD:2.7-5.25VDC
Operating temperature:0°C ~ 50°C(No condensation)
Operating humidity:20% ~ 85%RH(No condensation)
Storage temperature:-25°C ~ 70°C(No condensation)
Storage humidity:5% ~ 90%RH(No condensation)
Dimension(WxDxH):83.1×43.9×27.4mm
Weight:120g
Applications:
