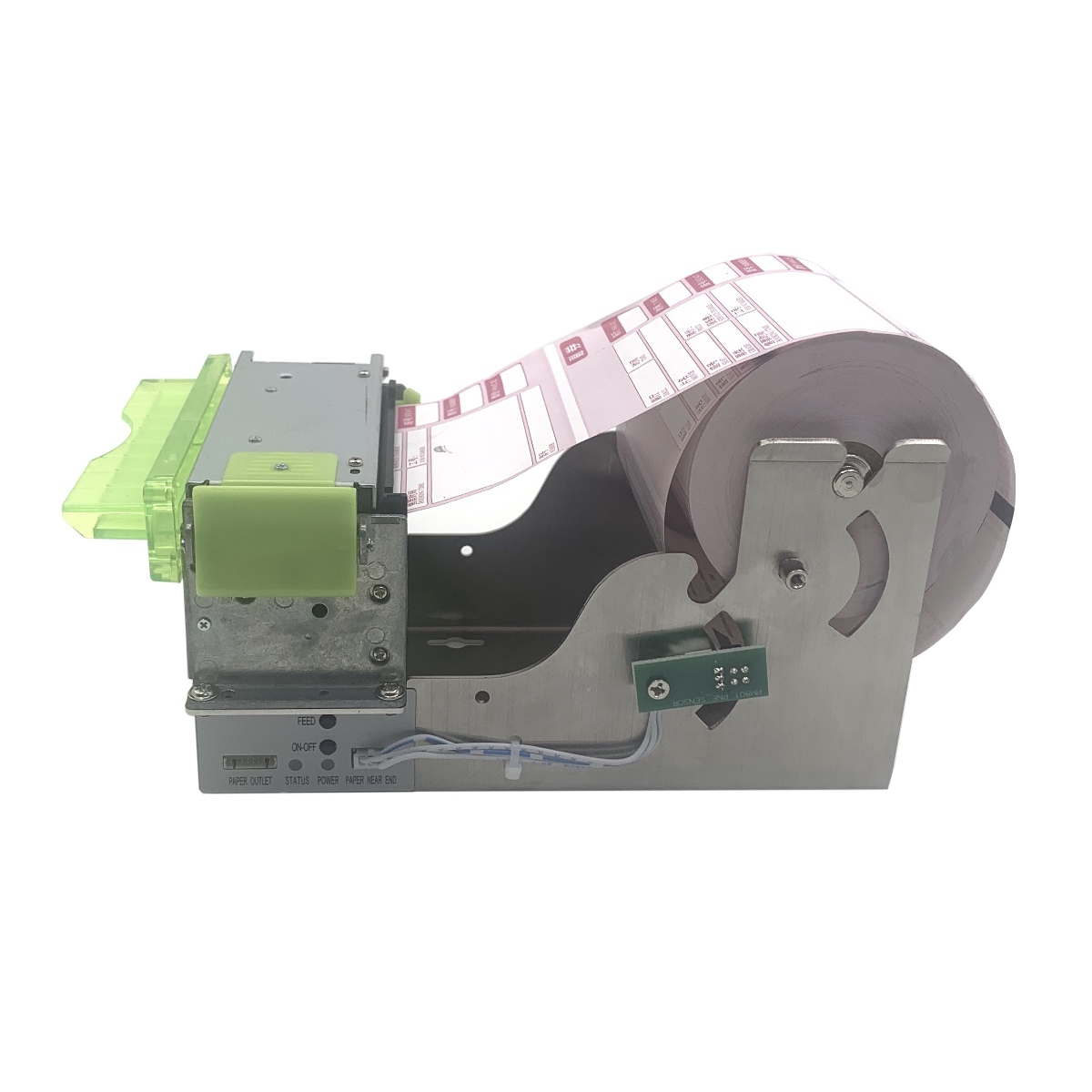

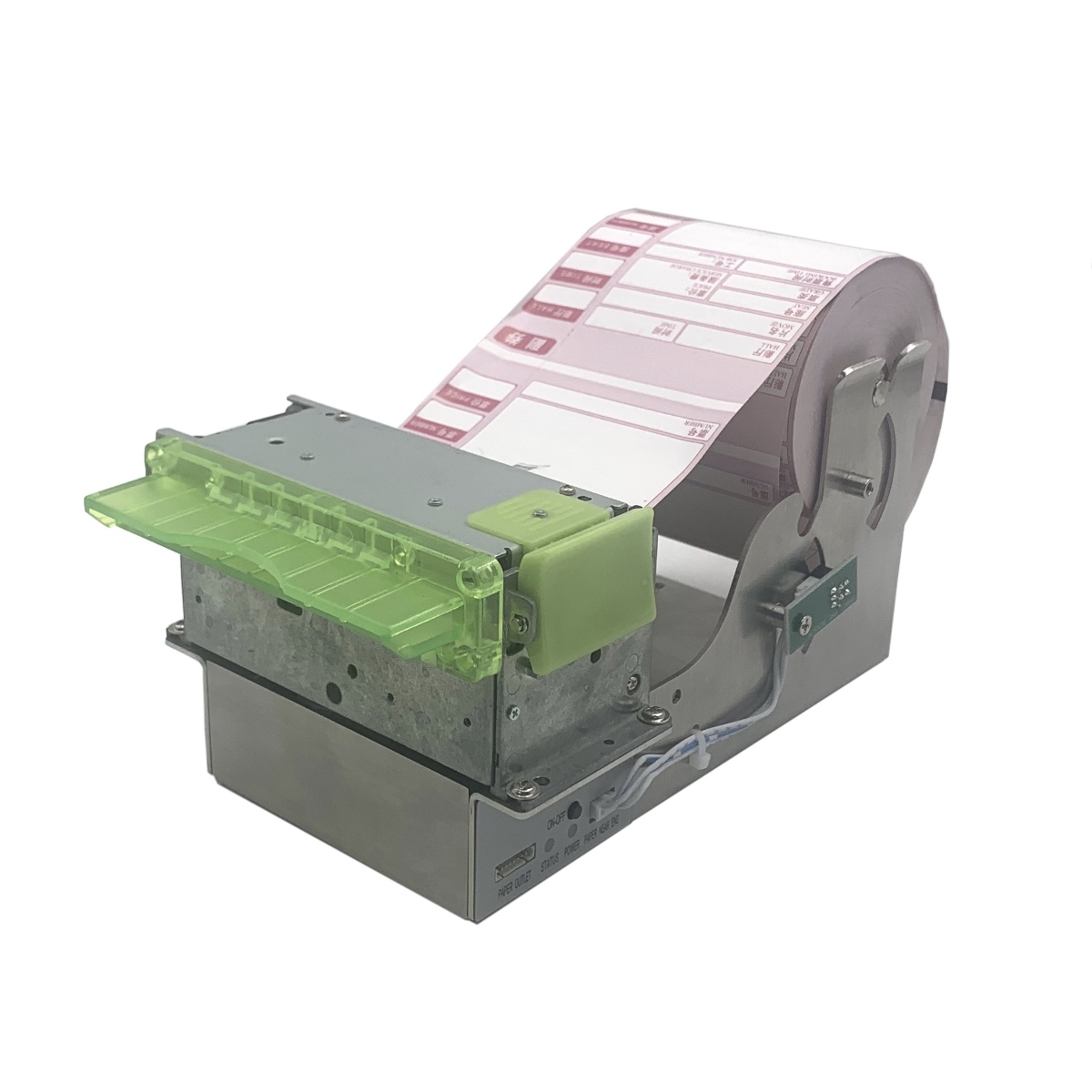

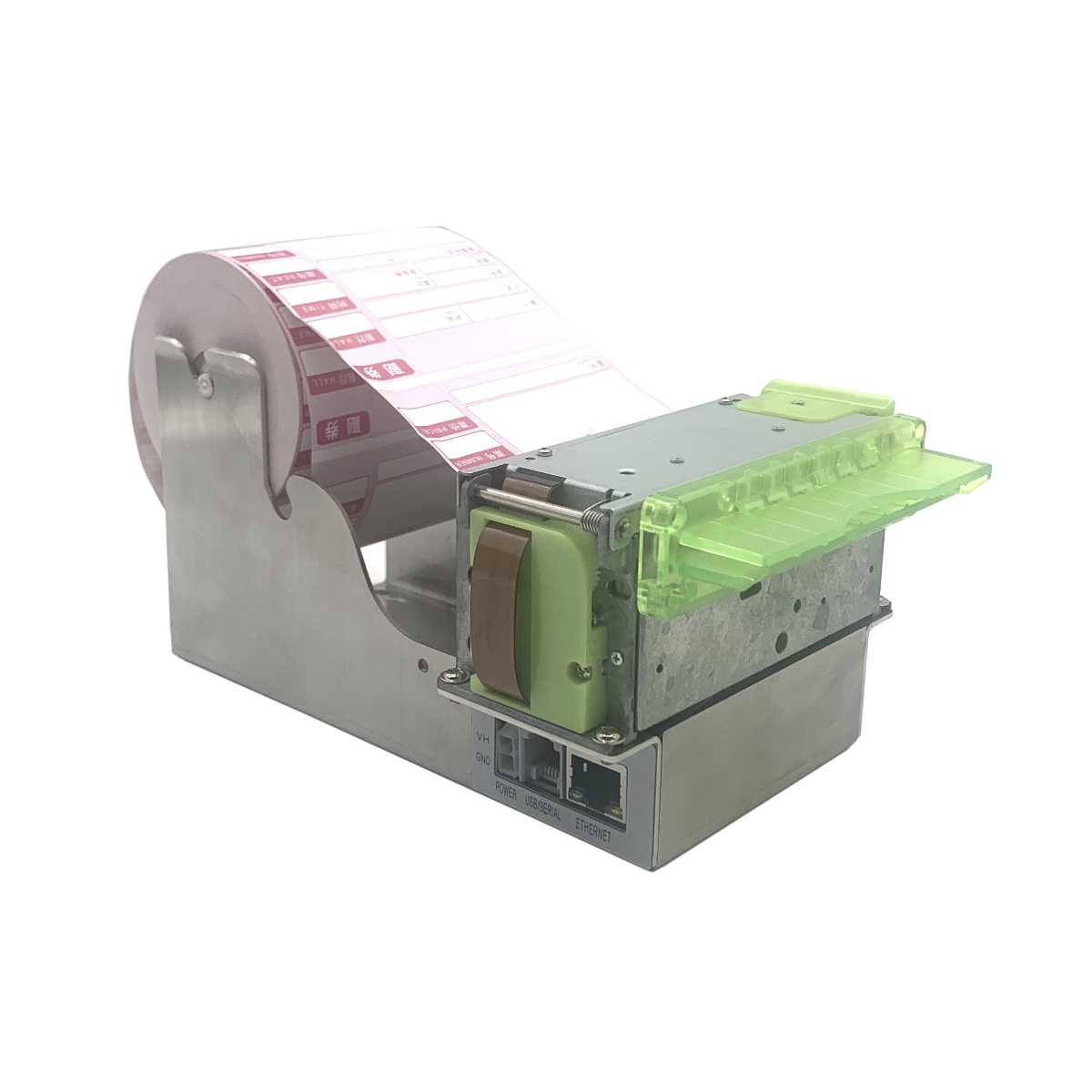

3 inch kiosk thermal printer for self-service terminal

Key Features：

• Multiple Interface Support
  • Equipped with USB, serial, and Ethernet ports, providing flexible connectivity for various systems.
• Versatile Paper Compatibility
  • Supports ticket paper, label paper, and black mark paper, making it suitable for diverse printing needs.
• User-Friendly Automatic Cutter and Paper Unloading
  • Includes an automatic cutter and paper unloading feature for convenient, user-friendly operation.
• Optimized for Unmanned Environments
  • Designed to maximize paper usage and operate intelligently in unmanned setups.
• Anti-Jam and Anti-Pull Features
  • Built with anti-jamming and anti-pull functions to minimize failures and ensure smooth operation.
• Easy Paper Loading System
  • Features a simple side-cover opening for quick paper loading, along with an auto-feed option.
• Quick Paper Jam and Cutter Reset
  • Allows fast paper jam clearance and cutter reset by simply opening the cover, ensuring seamless operation.

Product specification:

Model:KP-80A
Printing method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:MAX.250mm/s
Printing width:80mm
Interface:Serial,USB,Ethernet
Paper type:Thermal paper,Die-cut label paper, black mark paper
Paper width:23-82.2mm（adjustable）
Paper roll diameter:Max.150mm(Diameter above 150mm can be customized)
Paper thickness:0.053-0.2mm
Auto cutter:Full and half cuts (by command)
Reliability:TPH life 100km(12.5% printing rate)
Cutter life:More than 1 million times
Font:Chinese GBK:16×16,24×24
western languages ASCII:8×16,9×17,9×24,12×24
Barcode:1D UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D QR code,PDF417
Memory:RAM 64K/Flash 4M
Power supply:DC 24V/2A（peak≥6）
Command:ESC/POS（Ticket）、CPCL、TSPL、JPL（Label）
Driver:Windows XP、7、8、10/ Linux/MAC OS
SDK:Windows SDK/Linux SDK/Android SDK/IOS SDK
Operating temperature:0°C-50°C
Operating humidity:20%RH-85% RH
Storage temperature:-20°C-60°C
Storage humidity:5%-90%RH
Dimension(WxDxH) With paper outlet:112*190*84mm(Paper roll not included)
No paper outlet 112*164*84mm(Paper roll not included)
