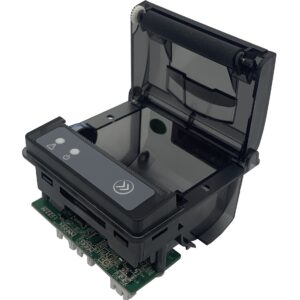

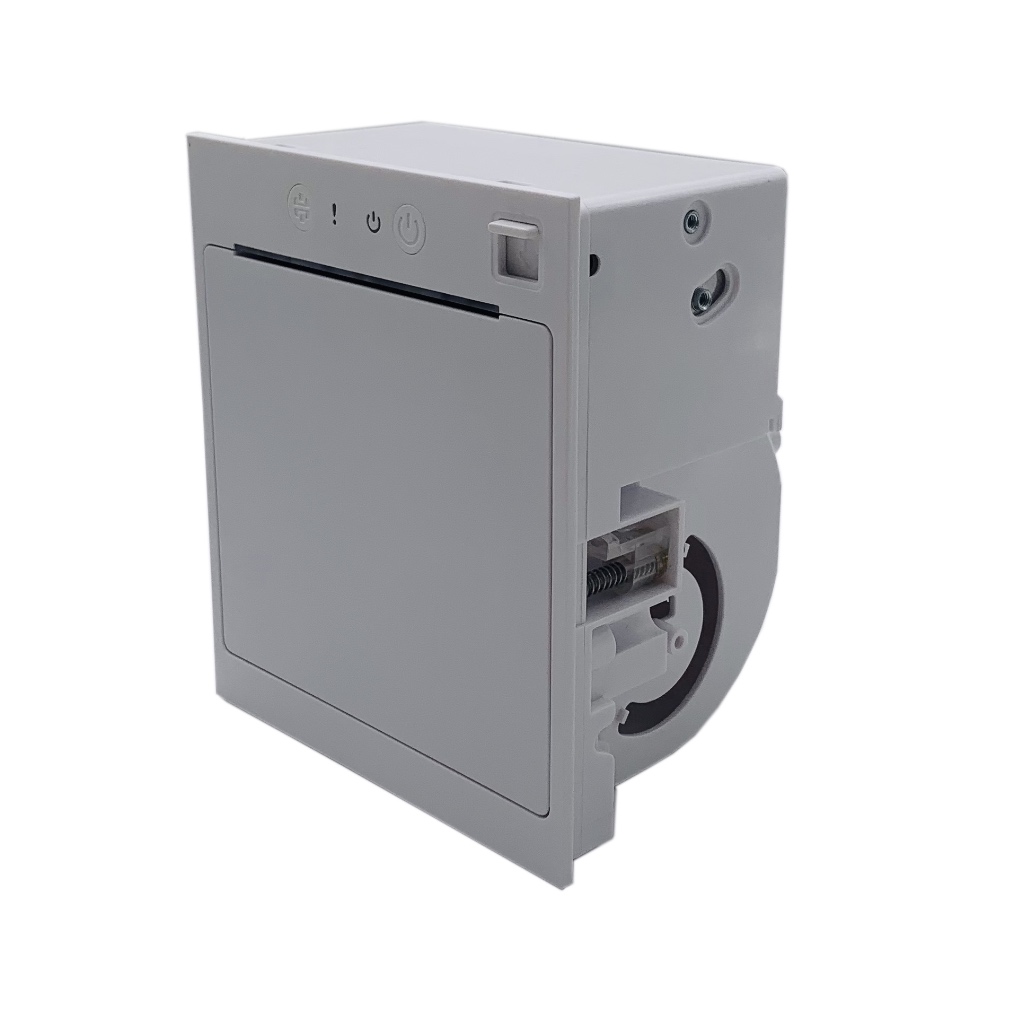

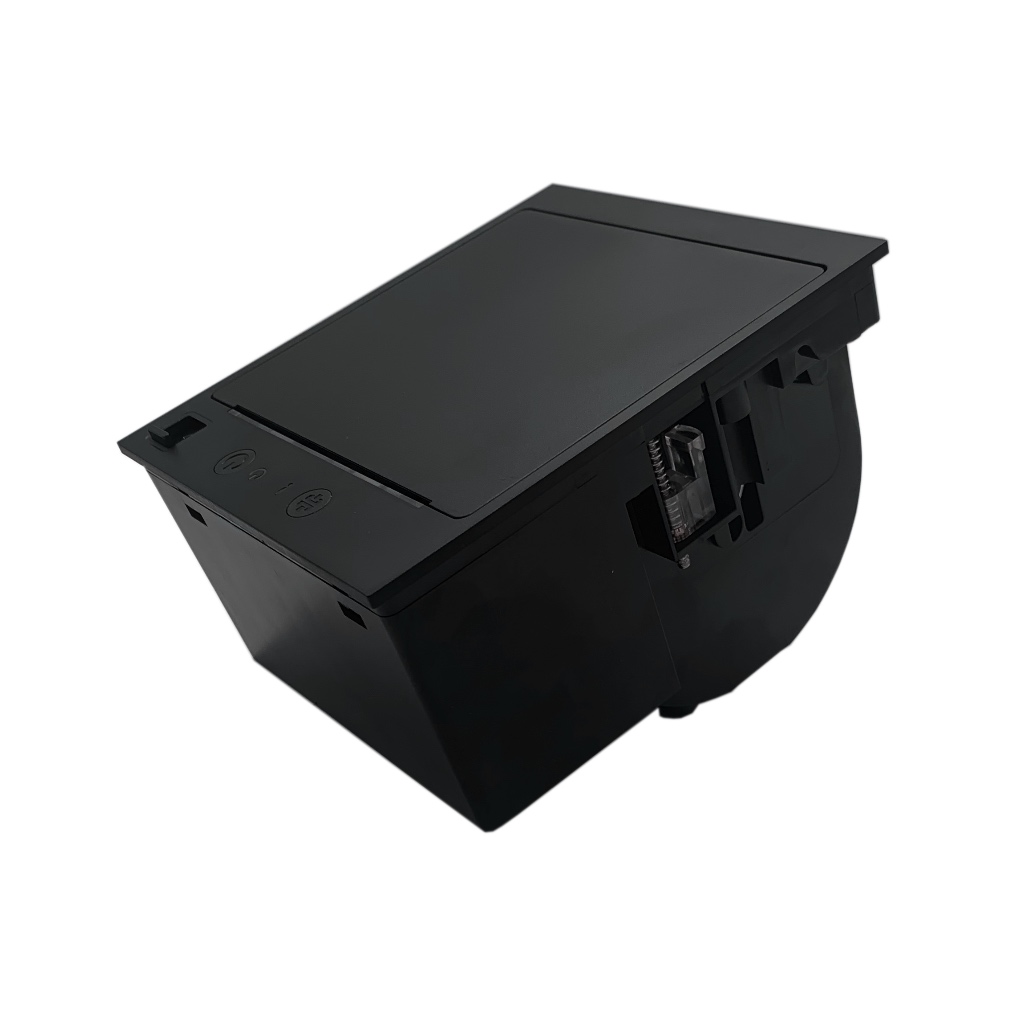

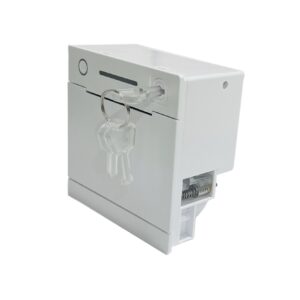

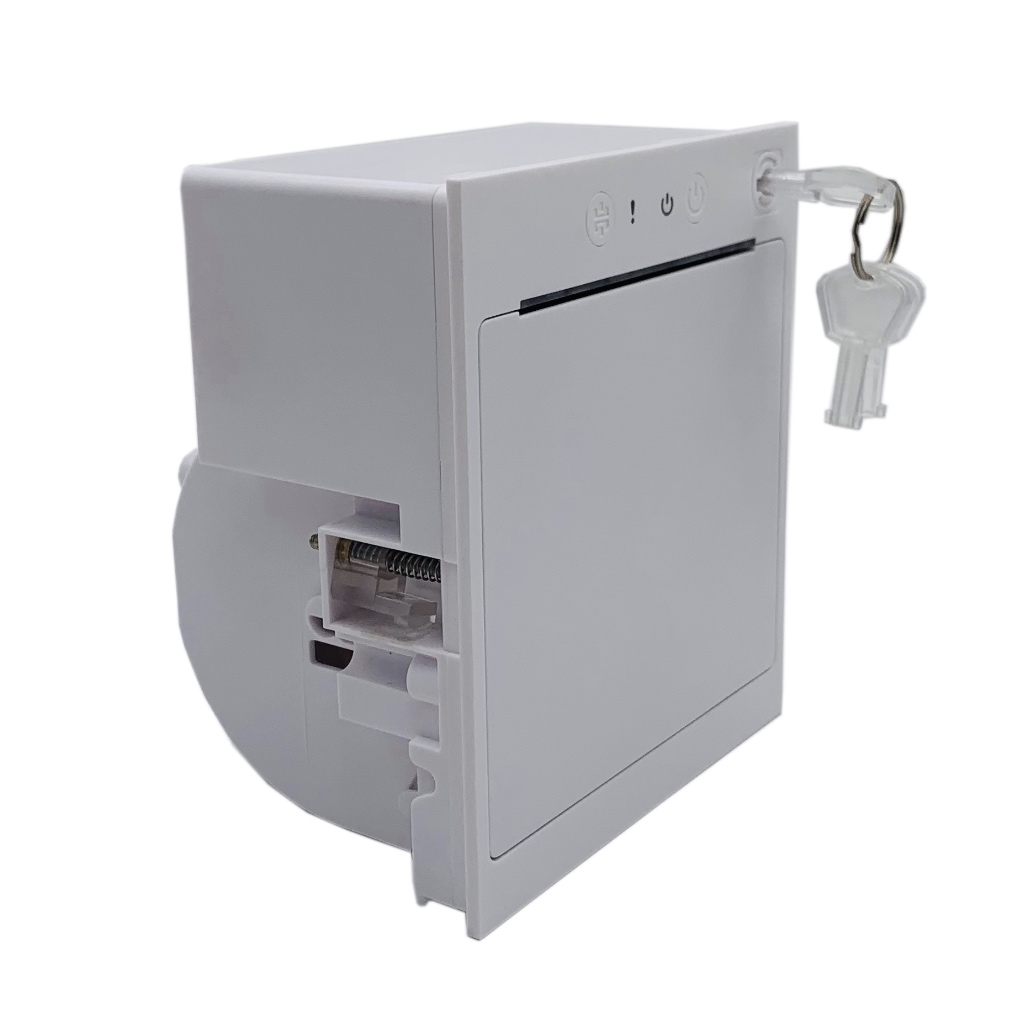

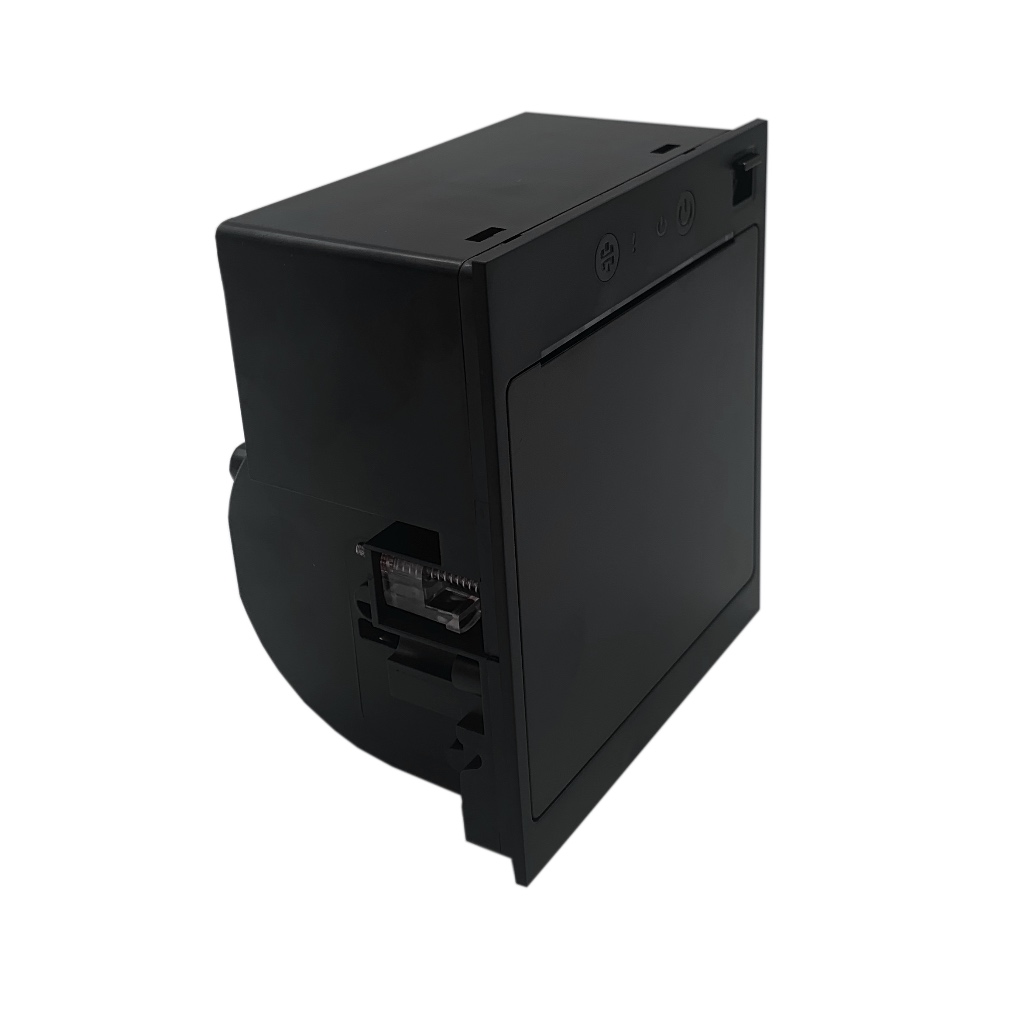

This 3-inch embedded thermal printer features two cover-opening options: key access or push-knob release, making it secure and convenient for various applications. Equipped with an automatic cutter, it offers high-speed, efficient printing, ideal for use in self-service kiosks and other automated equipment. Its robust design and fast performance make it a reliable choice for diverse self-service environments.
| Item no. | PM-801 |
|---|---|
| Dimension | 114.8*132*86.4mm |
| Color | white, black, silver |
| Payment | Paypal, Western Union, T/T |
| Lead Time | 1-2 weeks |
Our 3-inch embedded thermal printer is designed for seamless integration into a wide range of equipment, from medical devices and airport security systems to voting machines and weighing equipment. This self-contained unit offers flexible installation options, including adjustable clip mounts and panel screw mounts for easy device integration. With reliable, low-maintenance thermographic printing and multiple connectivity options, it’s an ideal solution for various applications.
Key Features：
Product specification:
Item：PM-801
Print method：Thermal dot line printing
Resolution：203 dpi(8dots/mm)
Printing speed：230 mm/s
Printing width：72mm
Interface：Serial,USB, Parallel
Memory：RAM 64K/Flash 4MB
Paper Type：Thermal paper, die cut label paper, black mark paper(24V)
Width：43-80mm (adjustable)
Roll paper diameter ：Max.80mm
Paper thickness:0.053-0.09mm(receipt)/0.10-0.15mm(label)
Character set: ASCII:8×16, 9×17,9×24,12×24 GBK:16×16,24×24
1D barcode UPC-A,UPCE,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128
2D barcode QR code,PDF417
Auto cutter:Full cut or partial cut( through command)
Power supply:DC 12-24(peak value≥6A)
Cashbox control:DC 12-24/1A
Reliability:TPH Life 100km(25% print density)100km(25% print density)
Cutter life:More than 1 million times
Dimensions(WxDxH):114.8*132*86.4mm
Installation port size:111.5*128.5mm
Embedded depth:≥84mm
Color :white, black, silver
Emulation:ESC/POS (Ticket)、 CPCL 、TSPL 、JPL ( Label)
Driver :Windows XP 、7 、8 、10/ Linux/MAC OS
Operating temperature:0°C~50°C
Storage temperature:-20°C ~ 60°C
Operating humidity:20%RH~85%RH
Storage humidity:5%~90%RH
Applications:
