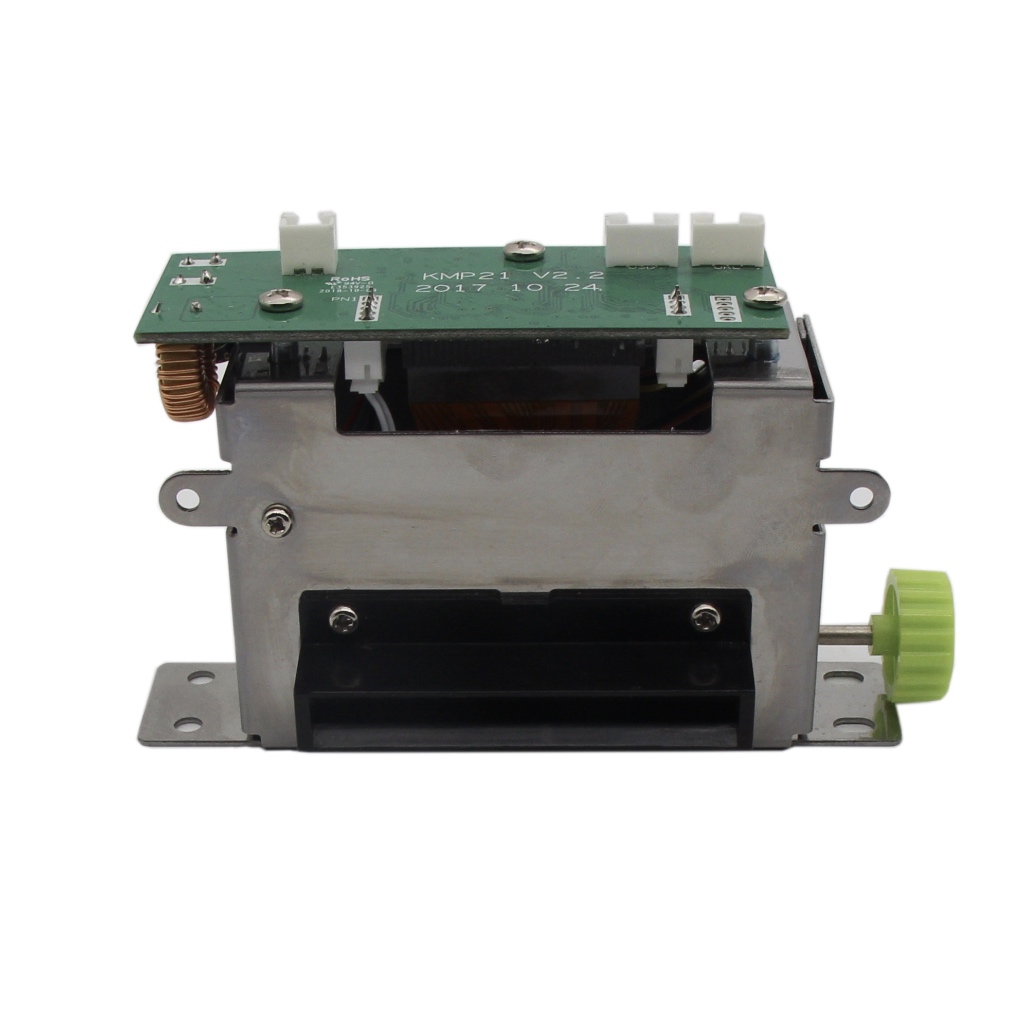

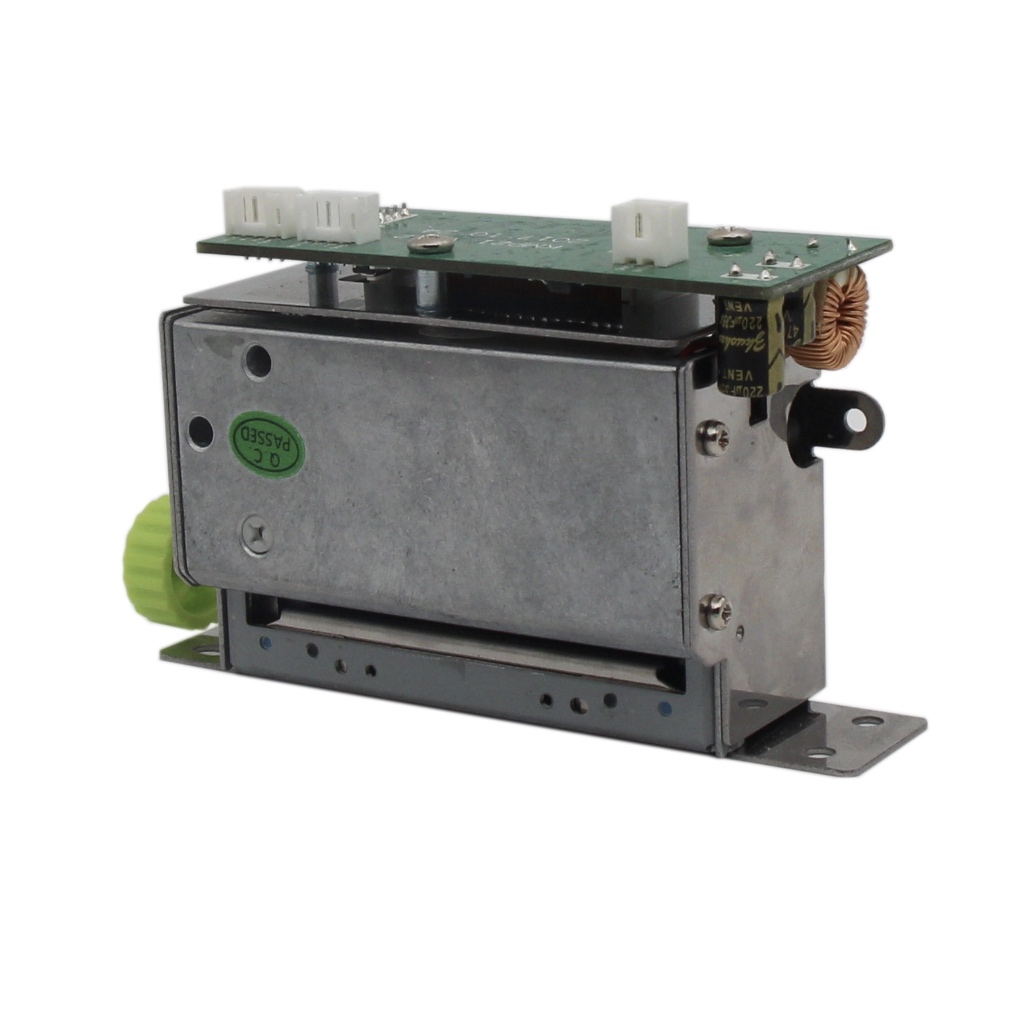

58mm kiosk thermal receipt printer with auto cutter

Category Tags , , , ,

KP-21 is an automatic paper cutting thermal printer with high quality printing and high stability. It can be used in numerous POS systems, food service and some other areas.

Additional information

Item no.

KP-21
Dimension

139.1*50.5*66.2mm
Color

N
Payment

Paypal, Western Union, T/T
Lead Time

1-2 weeks
ASK FOR A QUOTE

Product Details:

Built to be compact, reliable, and adaptable, this kiosk printer series is ideal for self-service setups in Retail, Hospitality, Healthcare, and more. It operates with direct thermal technology, printing at speeds of up to 100 mm per second at a 203 dpi resolution. With built-in paper-saving functions and various mounting options, it offers design flexibility for kiosk applications. A full suite of drivers and utilities is available for easy integration.

Key Features：

  • Automatic Paper Cutting
    • Includes an automatic cutter for smooth, efficient paper handling.
  • High-Quality Printing
    • Delivers sharp, clear print results.
  • USB and Serial Interface Support
    • Offers USB and serial connectivity for flexible integration.
  • Continuous Paper Printing
    • Supports uninterrupted printing on continuous paper rolls.
  • Automatic Paper Feeding
    • Equipped with automatic paper feeding for easy operation.

Product specification:

Model:KP-21
Printing method:Thermal dot line printing
Paper width:58mm
Printing width:48mm
Resolution:203DPI
Points per line:384 dots
Printing speed:100mm/s
Interface:Serial,USB
Paper Type:Continuous paper
Paper roll diameter:Max.100mm
Paper thickness:0.053-0.08mm
Paper loading:Automatic paper inhaling
Auto Cutter:Full cut and Partial cut by command
TPH life:100km(12.5% print density)
Cutter life:1000000 cuts or more
Printable content:GBK Chinese character library, ASCII characters, one-dimensional bar code, support for different density dot maps and download bitmap printing. Scalable 2D barcode.
Default font:9X17、9X24、8X16(ASCII),24×24(Chinese)
Power:DC 12V/2A
Command:ESC/POS
Device:Windows XP、7、8、10/ Linux/UBUNTU/ MAC OS
Dimension(WxDxH):139.1*50.5*66.2mm
Weight(g):230g(without paper roll)

Applications:

1. ATM
2. Queuing machine
3. Vending machine
4. GAS station
5. Power charging pile
