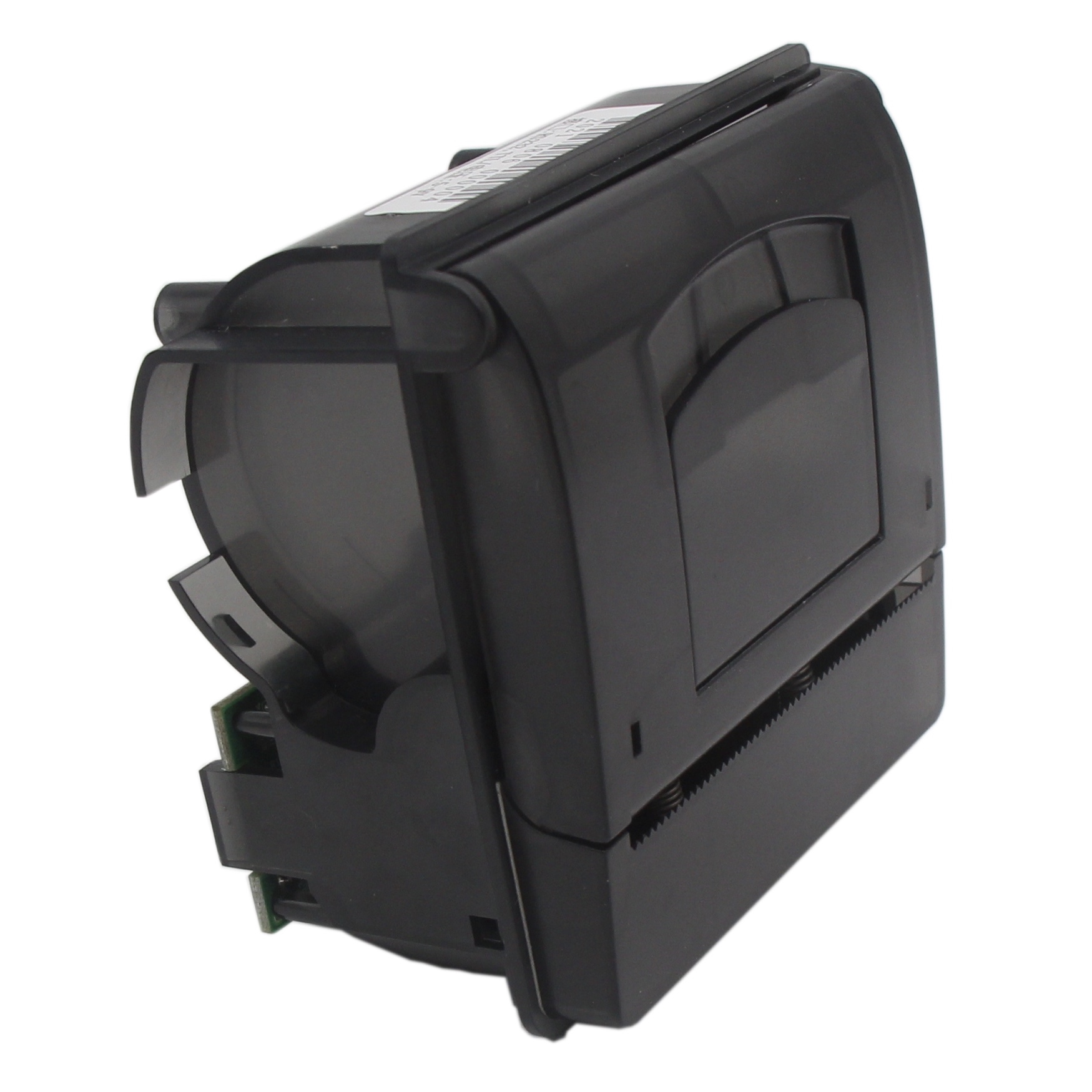

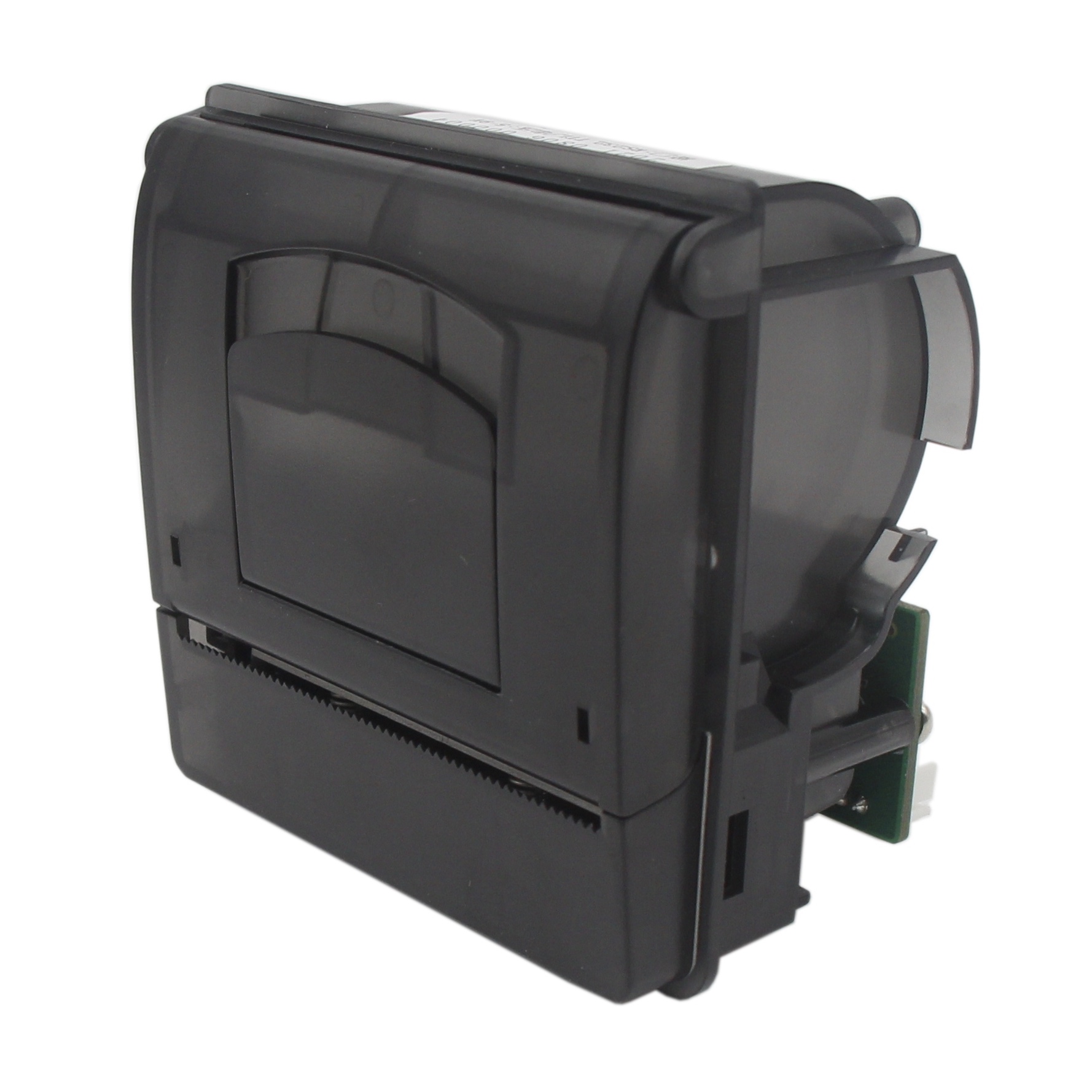

58mm mini panel mount thermal printer with serial/usb interface

Category Tags , , ,

These robust printing solutions deliver high-quality direct thermal printing at 203 dpi, producing clear text, images, and barcodes on receipt and ticket media. Ideal for kiosk applications where space is limited, they offer reliable performance in compact environments.low-cost printing option.

Additional information

Item no.

PM-21
Dimension

76.8*77.4*47.7mm
Color

white, black
Payment

Paypal, Western Union, T/T
Lead Time

1-2 weeks
ASK FOR A QUOTE

Product Details:

Panel mount thermal printers are designed for use with 2-inch thermal paper, providing a practical solution for thermal printing applications via serial/USB interface. These printers are lightweight, fast, reliable, and built for durability. Available with Serial TTL/RS232,USB connectivity and multiple driving voltage options, they offer flexibility for a wide range of uses.

Key Features：

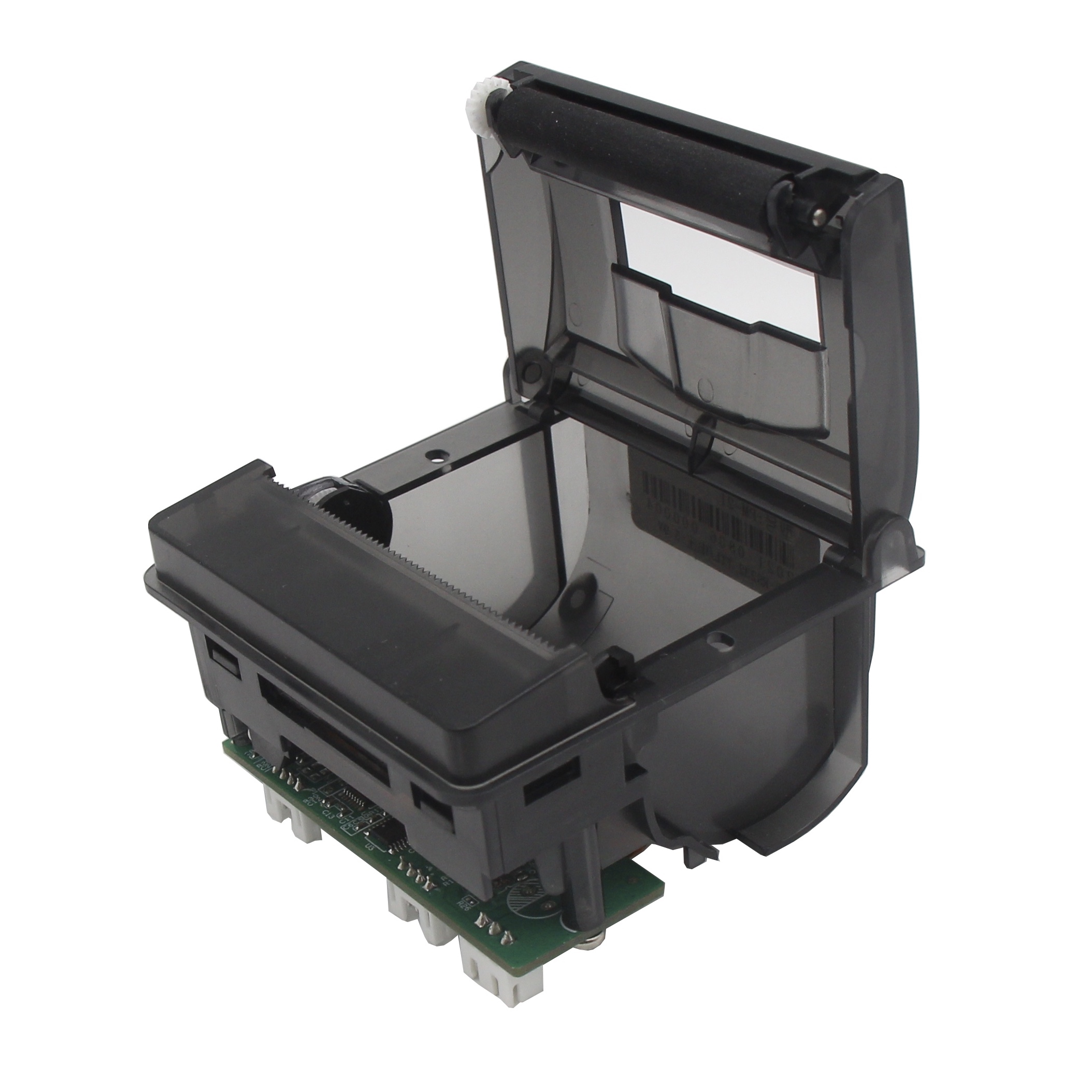

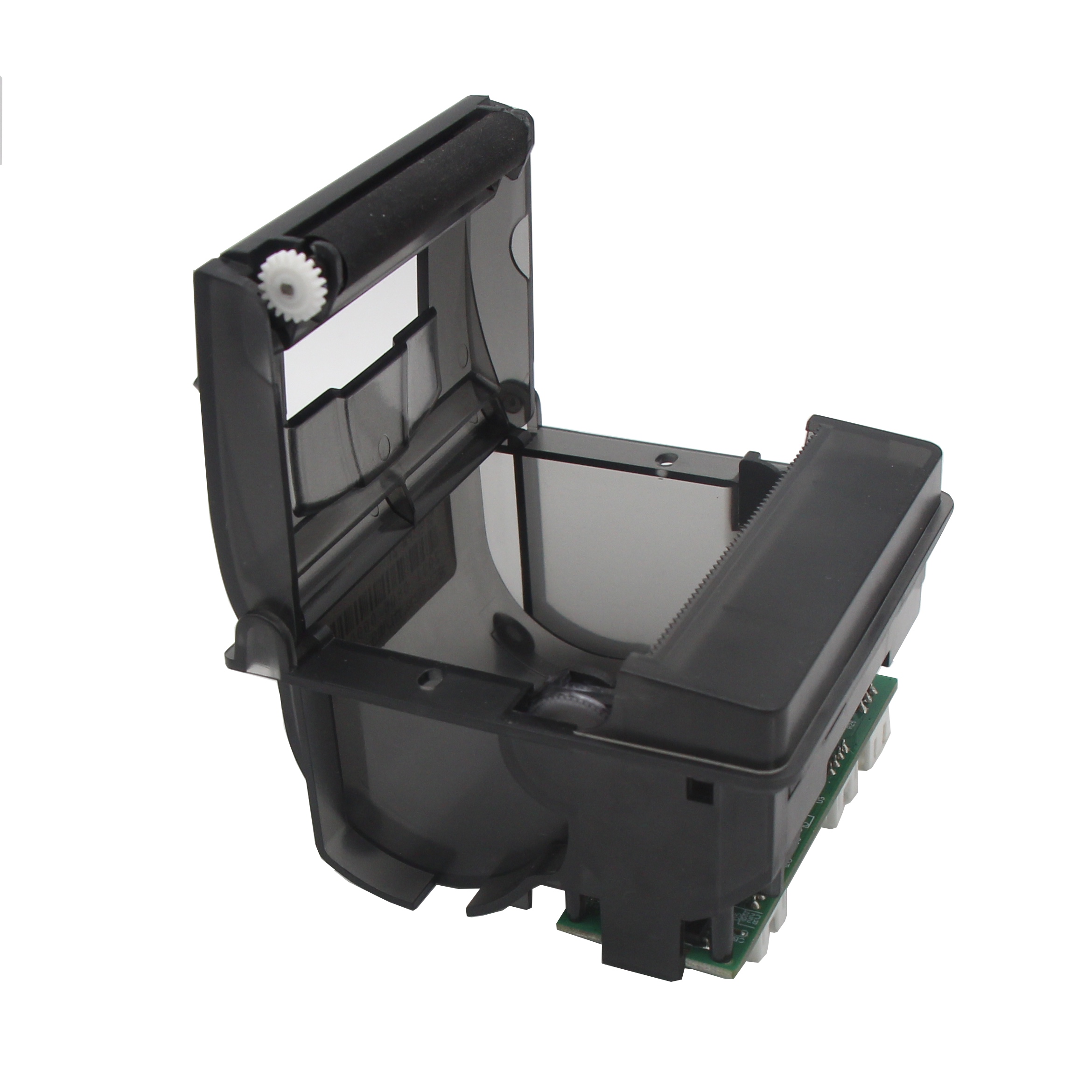

  • Easy Loading and Maintenance
    • Features a simple loading mechanism for quick paper replacement and easy maintenance.
  • Supports Various Panel Thicknesses
    • Adaptable to different panel thicknesses, ensuring versatile installation options.
  • Compact Size
    • Small and space-saving, perfect for embedded applications.
  • Multiple Interface Options
    • Offers a variety of interface choices to suit different connectivity needs.
  • Easily Integrates into Various Equipment
    • Designed for seamless embedding in diverse instruments and meters.

Product specification:

Item:PM-21
Printing method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.80mm/s
Printing width:48mm
Interface:Serial,USB
Paper Type:Continuous paper
Paper width:57.5mm±0.5mm
Paper roll diameter:Max.40mm
Paper thickness:0.053-0.08mm
Paper loading:Easy paper loading
Reliability:TPH life 50km(25% print density)
Resident Fonts:Chinese GBK:16×16,24×24
Alphanumeric ASCII:8×16,9×17,9×24,12×24
Barcode:1D UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D QR code,PDF417
Power supply:DC 5-9V/2A or DC 12V/2A
Emulation:ESC/POS
Driver:Windows XP、7、8、10/ Linux/MAC OS
SDK:Windows SDK/Linux SDK/Android SDK/IOS SDK
Dimension(WxDxH) :76.8*77.4*47.7mm
Mounting port size:73.1*73.55mm
Embedded depth:35mm
Color:Black/White

Applications:

  1. Fuel dispensers
  2. Safety systems
  3. Automated instruments
  4. Medical printing devices
  5. In-vehicle printing
  6. Metering equipment
