80mm thermal Printer Mechanism Compatible with LTP347F-C576-E

Category Tags , , ,

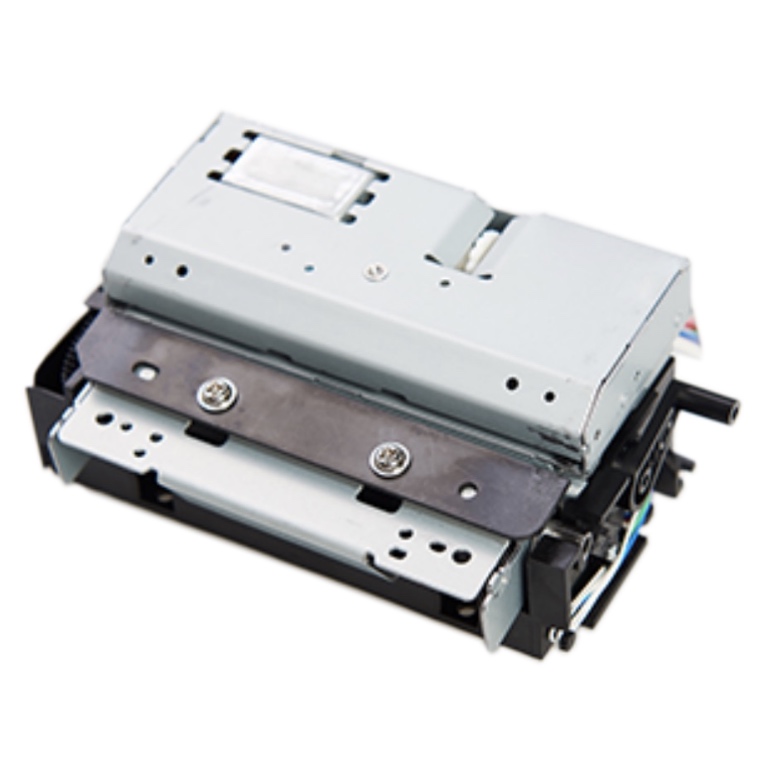

The 80mm thermal printer head mechanism with an integrated cutter is fully compatible with the Seiko LTP347F-C576-E. Designed for thermal receipt printing, it offers reliable performance and is an ideal solution for KIOSK systems, combining efficiency, precision, and durability.

Additional information

Item no.

TP-31
Dimension

110.2x54x25.8mm
Color

N
Payment

Paypal, Western Union, T/T
Lead Time

1-2 weeks
ASK FOR A QUOTE

Product Details:

Thermal printer mechanisms are engineered to meet the demands of creating smaller, faster, and more dependable mobile devices. These advanced mechanisms offer outstanding value by providing enhanced design versatility, superior reliability, and exceptional printing performance.
Key Features：
  • Effortless Paper Loading: Simplifies the process for quick and seamless operation.
  • 90° Vertical Paper Feeding: Ensures efficient and compact functionality.
  • Model Compatibility: Fully compatible with Seiko LTP347F-C576-E for versatile applications.
  • Integrated Auto Cutter: Features an automatic cutter for precise and convenient paper handling.

Product specification:

Item:TP-31
Print method :Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.250mm/s
printing width :72mm
Paper Type:Continuous paper
Paper width:79.5mm±0.5mm
Paper thickness:0.053-0.10mm
Paper loading:Easy paper loading
TPH temperature:thermistor
Paper end detection:Photo interrupter
Rubber roller/cutter position:Mechanical switch
TPH life:More than 100km(12.5% print density)
Wear life:More than 100km
Auto cutter:1,000,000cuts
Printer head:VH:21.6-26.4VDC
Motor:24±10%VDC
Logic voltage:VDD:4.7-5.25VDC
Operating temperature:0°C ~ 50°C(No condensation)
Operating humidity:20% ~ 85%RH(No condensation)
Storage temperature:-25°C ~ 70°C(No condensation)
Storage humidity:5% ~ 90%RH(No condensation)
Dimension(WxDxH):110.2x54x25.8mm
Weight:168g

Applications:

  1. ECR/financial POS
  2. Parking system
  3. Medical devices
  4. Measuring device
  5. Self-service terminals
  6. Game machine/voting machine
