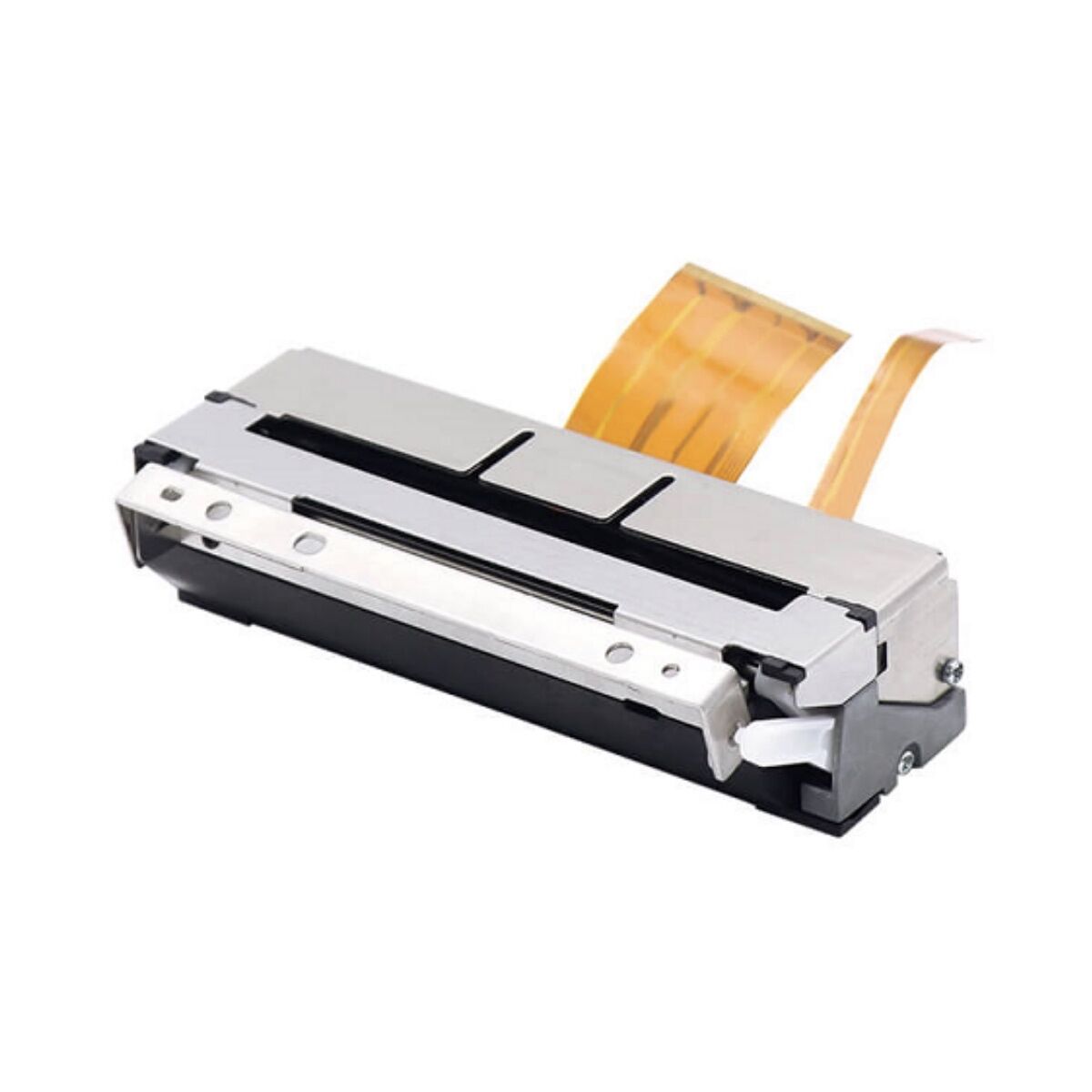

This printer mechanism is compatible with CAPD347C and features a built-in auto cutter. It is specially designed for kiosk printers and other self-service devices, offering high-speed, stable, and reliable performance for demanding applications.
| Item no. | TP-33 |
|---|---|
| Dimension | 105.1×43.9×27.4mm |
| Color | N |
| Payment | Paypal, Western Union, T/T |
| Lead Time | 1-2 weeks |
Product specification:
Item:TP-33
Print method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.200mm/s
Printing width:72mm
Paper Type:Continuous paper
Paper width:79.5mm±0.5mm
Paper thickness:0.053-0.09mm
Paper loading:Easy paper loading
TPH temperature:thermistor
Paper end detection:Photo interrupter
Rubber roller/cutter position:Mechanical switch
TPH life:More than 100km(12.5% print density)
Wear life:More than 100km
Auto cutter:1,000,000cuts
Printer head:VH:21.6-26.4VDC
Motor:24±10%VDC
Logic voltage:VDD:4.7-5.25VDC
Operating temperature:0°C ~ 50°C(No condensation)
Operating humidity:20% ~ 85%RH(No condensation)
Storage temperature:-25°C ~ 70°C(No condensation)
Storage humidity:5% ~ 90%RH(No condensation)
Dimension(WxDxH):105.1×43.9×27.4mm
Weight:160g
Applications:
