Label Printing Module kiosk thermal label printer

Category Tags , , , ,

The KP-561 is a streamlined model featuring a reliable structure, low power consumption, and compatibility with Windows, Linux, and mobile Android systems. Its efficient design makes it ideal for a range of applications, balancing performance with energy savings.

Additional information

Item no.

KP-561
Dimension

107*222*93.3mm
Color

N
Payment

Paypal, Western Union, T/T
Lead Time

1-2 weeks
ASK FOR A QUOTE

Product Details:

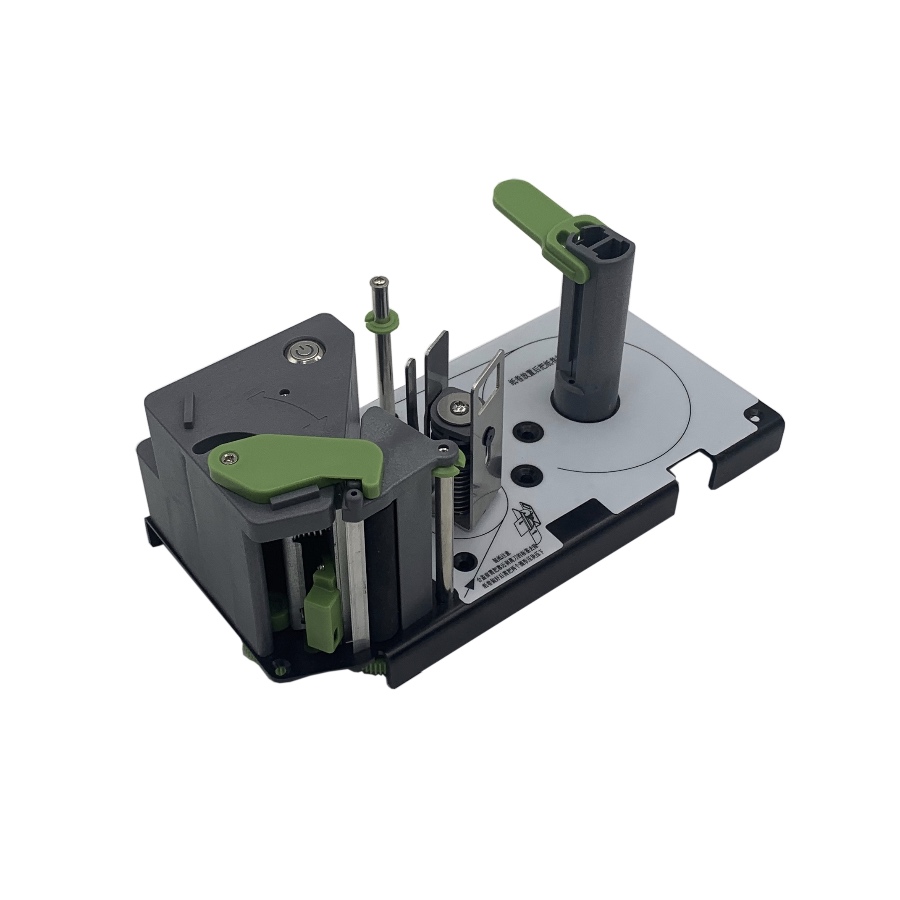

The KP-561 is a kiosk thermal printer with label peeling functionality, featuring an elegant, streamlined design. It offers a printing speed of 150 mm/s with clear, stable print quality. With adjustable paper widths from 15 to 60 mm, it accommodates a variety of printing sizes to meet diverse needs.

Key Features：

  • Quiet, High-Speed Printing
    • Operates with low noise and delivers high-speed output for efficient printing.

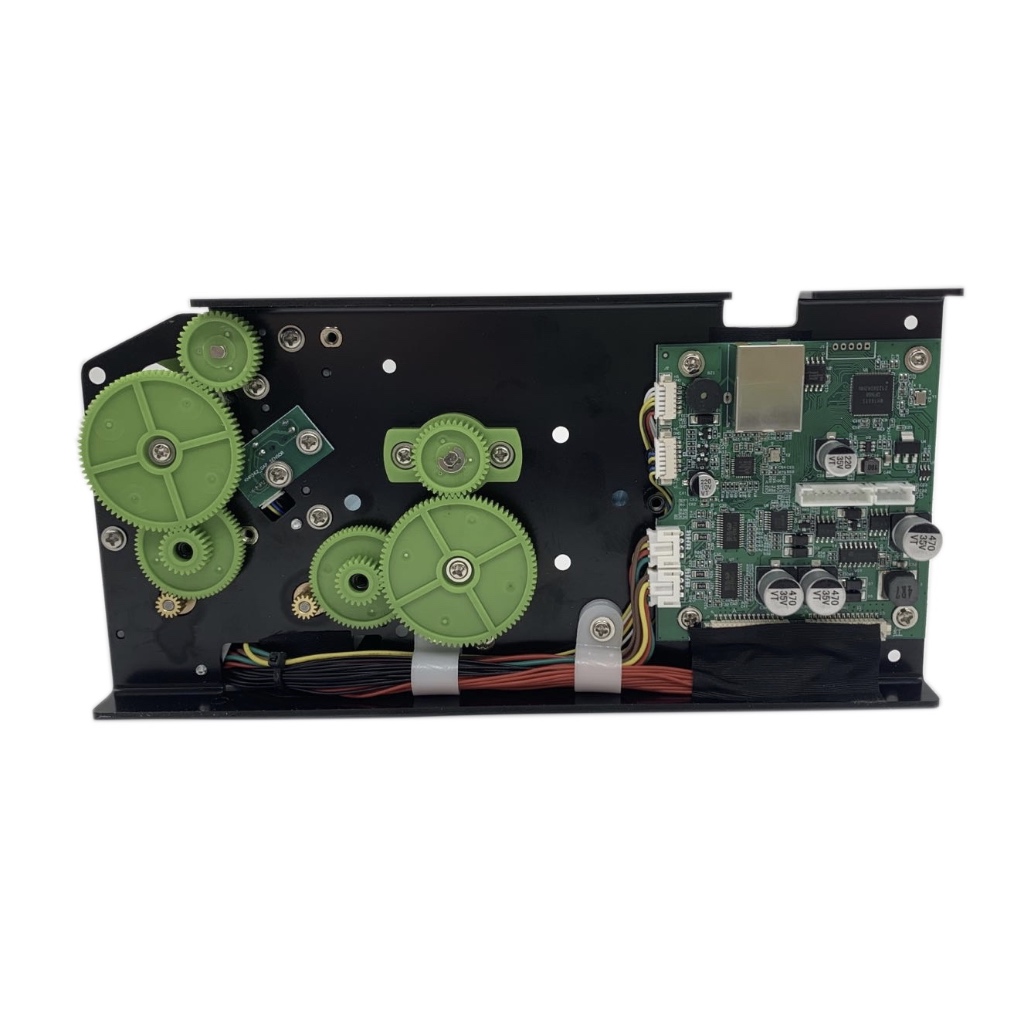

  • Dual Motor Design
    • Equipped with a double large motor system for stable and reliable performance.
  • Multi-Function Button for Ease of Use
    • Single-button operation simplifies user interaction for seamless control.
  • Quick and Easy Paper Loading
    • Designed with a fast-loading paper system, making setup simple and efficient.
  • User-Friendly and Low Maintenance
    • Built for ease of use and minimal maintenance, ensuring smooth operation.

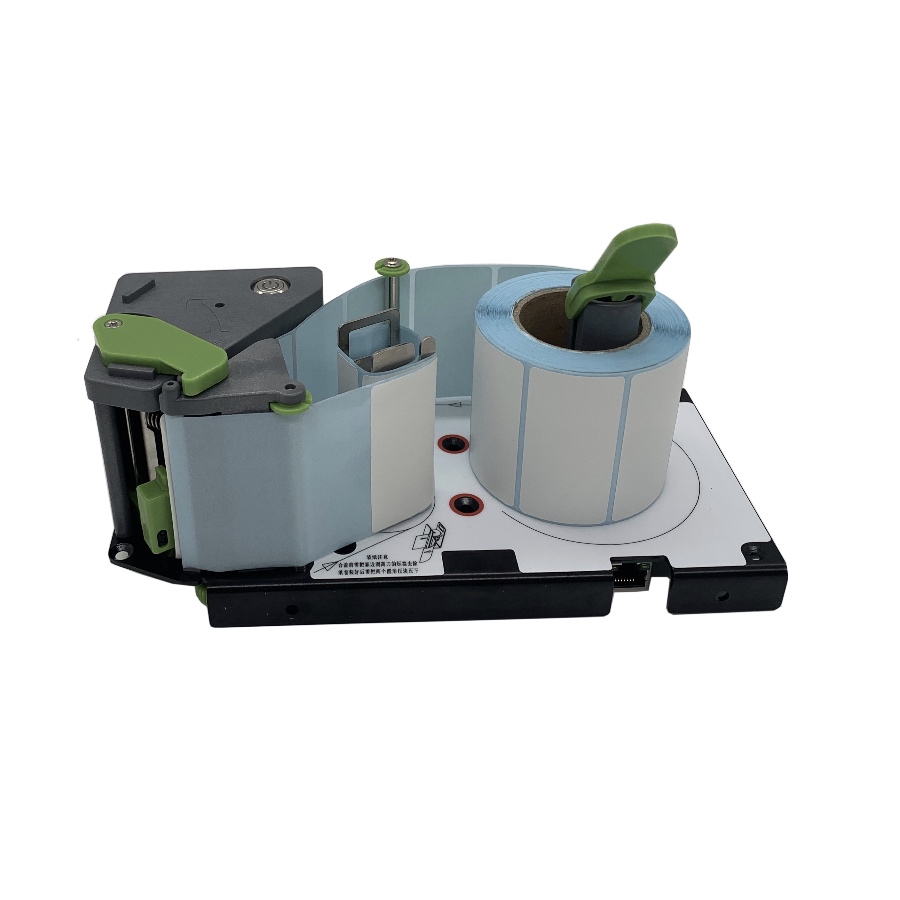

  • Label Printing with Adjustable Widths
    • Supports printing on various label widths, enhancing flexibility for different needs.
  • Multiple Interface Options
    • Offers USB, serial, and Ethernet communication modes to meet diverse connectivity requirements.
  • Advanced Detection Features
    • Supports paper removal, cover open/close status, and near-end paper detection for enhanced usability.

Product specification:

Model:KP-561
Printing method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:MAX.150mm/s
Printing width:56mm
Interface :Serial,USB,Ethernet(optional)
Paper  type:Die-cut label paper, black mark paper
Paper width:15-60mm（adjustable）
Paper roll diameter:Max.100mm
Inner diameter of paper roll core:MIN.25mm
Paper thickness:0.08-0.2mm
Paper loading :Easy paper loading
Reliability:TPH life 100km(12.5% printing rate)
Font:Chinese GBK:16×16,24×24
western languages ASCII:8×16,9×17,9×24,12×24
Barcode:1D UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D QR code,PDF417
Memory:RAM 64K/Flash 4M
Power supply :DC12V/2.5A（peak>6A）or DC24V/2A（peak>6A）
Command:ESC/POS（Ticket）、CPCL、TSPL、JPL（Label）
Driver:Windows XP、7、8、10/ Linux/MAC OS
SDK:Windows SDK/Linux SDK/Android SDK/IOS SDK
Operating temperature:0°C-50°C
Operating humidity:20%RH-85% RH                                                                         Storage temperature:-20°C-60°C                                                                                 Storage humidity:5%-90%RH
Dimension(WxDxH):107*222*93.3mm
Weight(g):1050g

Applications:

1. Medical waste
2. Retail
3. Weighing machine
4. Self-service terminal
5. Warehousing logistics
