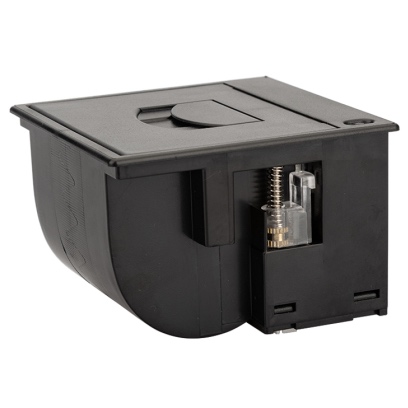

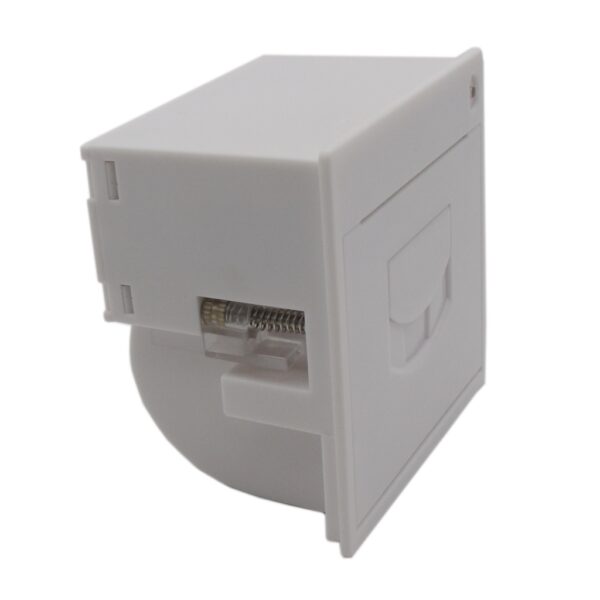

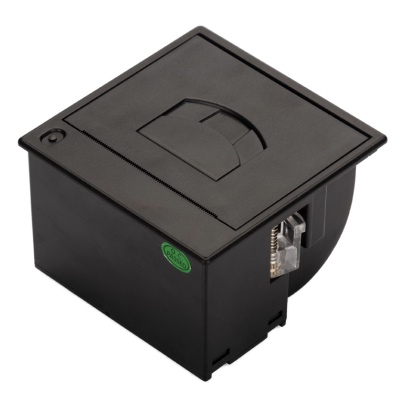

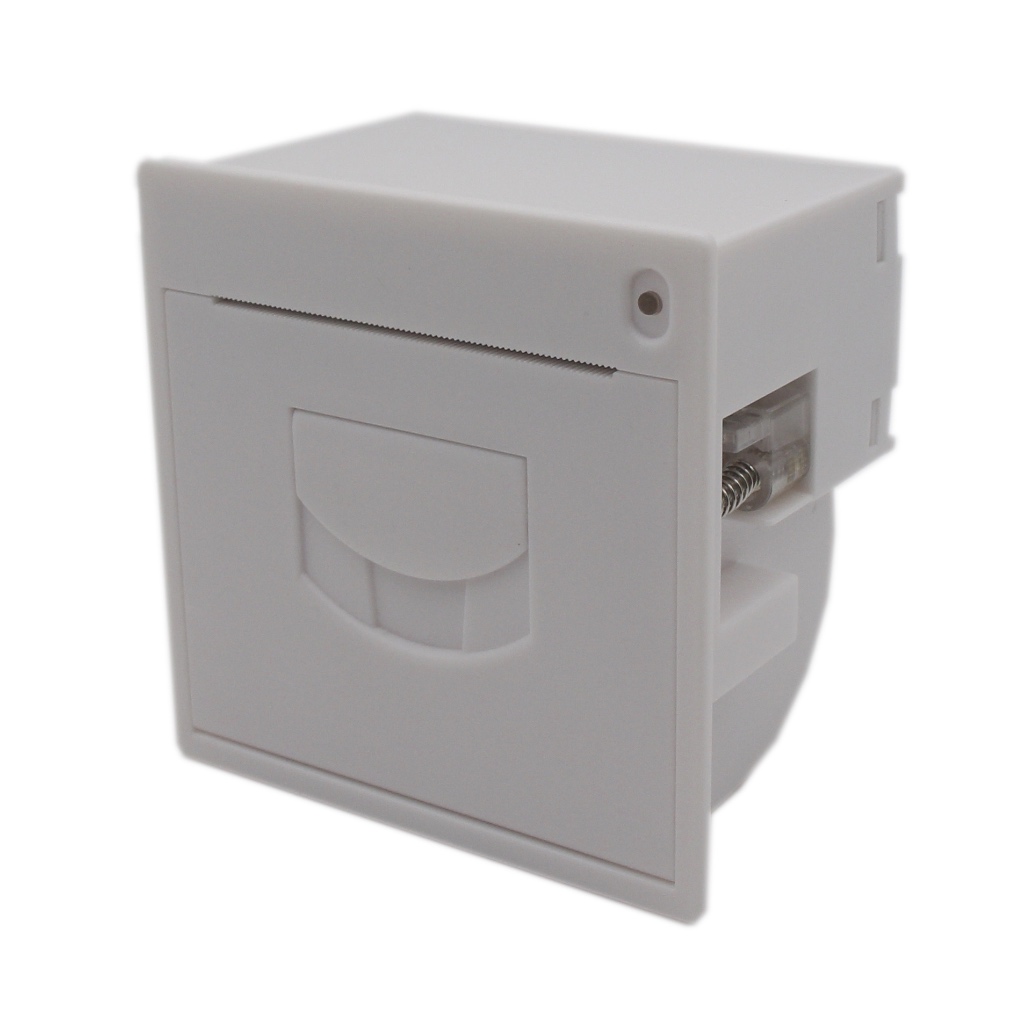

mini thermal embedded printer for printing thermal ticket

Key Features：

• Quick and Simple Paper Loading
  • Features an easy-loading mechanism for fast paper replacement and low-maintenance operation.
• Compatible with Various Panel Thicknesses
  • Adapts to different panel thicknesses, allowing flexible and secure mounting options.
• Compact Design
  • Small and space-saving, ideal for applications where size is a critical factor.
• Multiple Interface Options
  • Offers various connectivity options to meet diverse operational needs.
• Easily Integrates with Equipment
  • Designed for seamless embedding in a range of instruments and meters

Product specification:

Item:PM-24
Printing method:Thermal dot line printing
Resolution:203Dpi(8dot/mm)
Printing speed:Max.80mm/s
Printing width:48mm
Interface :Serial,USB
Paper Type:Continuous paper, die-cut or continuous label
Paper width:57.5mm±0.5mm
Paper roll diameter:Max.50mm
Paper thickness:0.053-0.08mm
Paper loading:Easy paper loading
Reliability:TPH life 50km(25% print density)
Resident Fonts:Chinese GBK:16×16,24×24
Alphanumeric ASCII:8×16,9×17,9×24,12×24
Barcode:1D UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D QR code,PDF417
Power supply:DC 5-9V/2A or DC 12V/2A
Cashbox control:DC 12V/1A
Emulation:ESC/POS
Driver:Windows XP、7、8、10/ Linux/MAC OS
SDK:Windows SDK/Linux SDK/Android SDK/IOS SDK
Dimension(WxDxH):85mm*85mm*56mm
Mounting port size:80.3*80.3mm
Embedded depth:53.5mm
Color:Black
